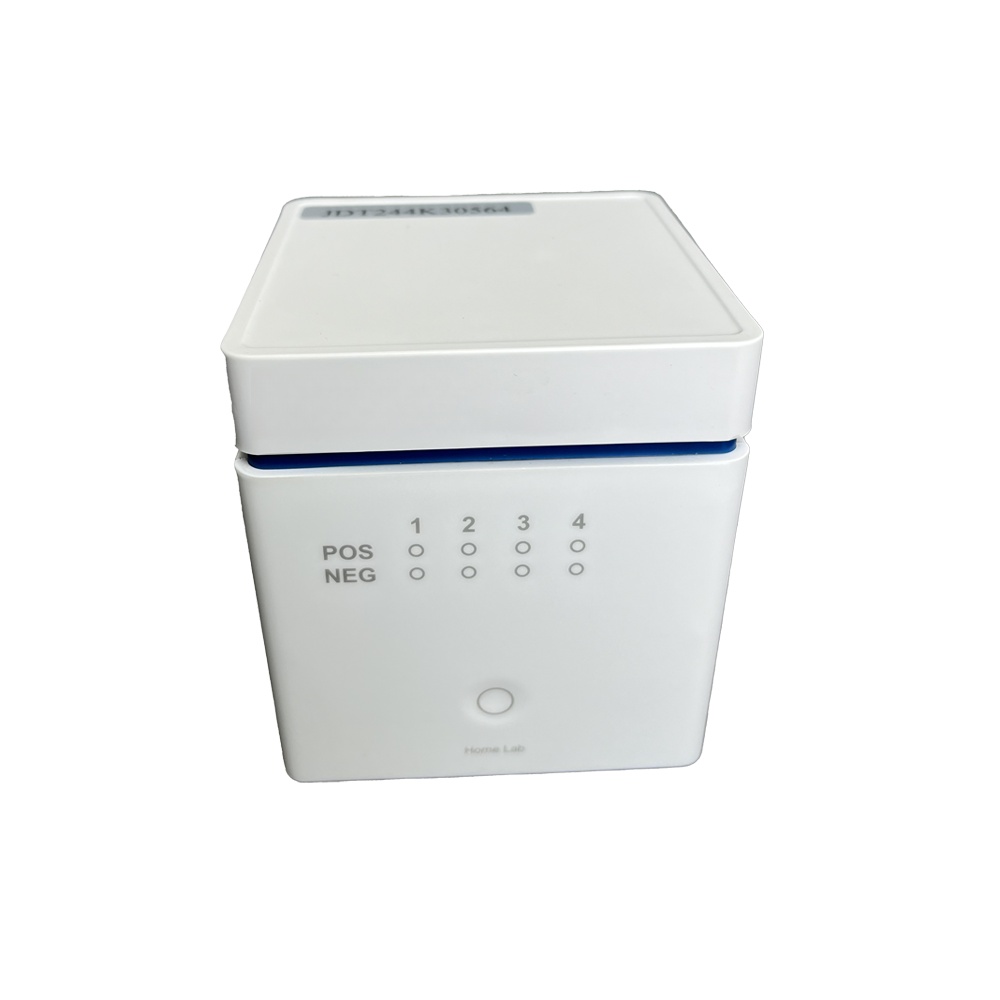

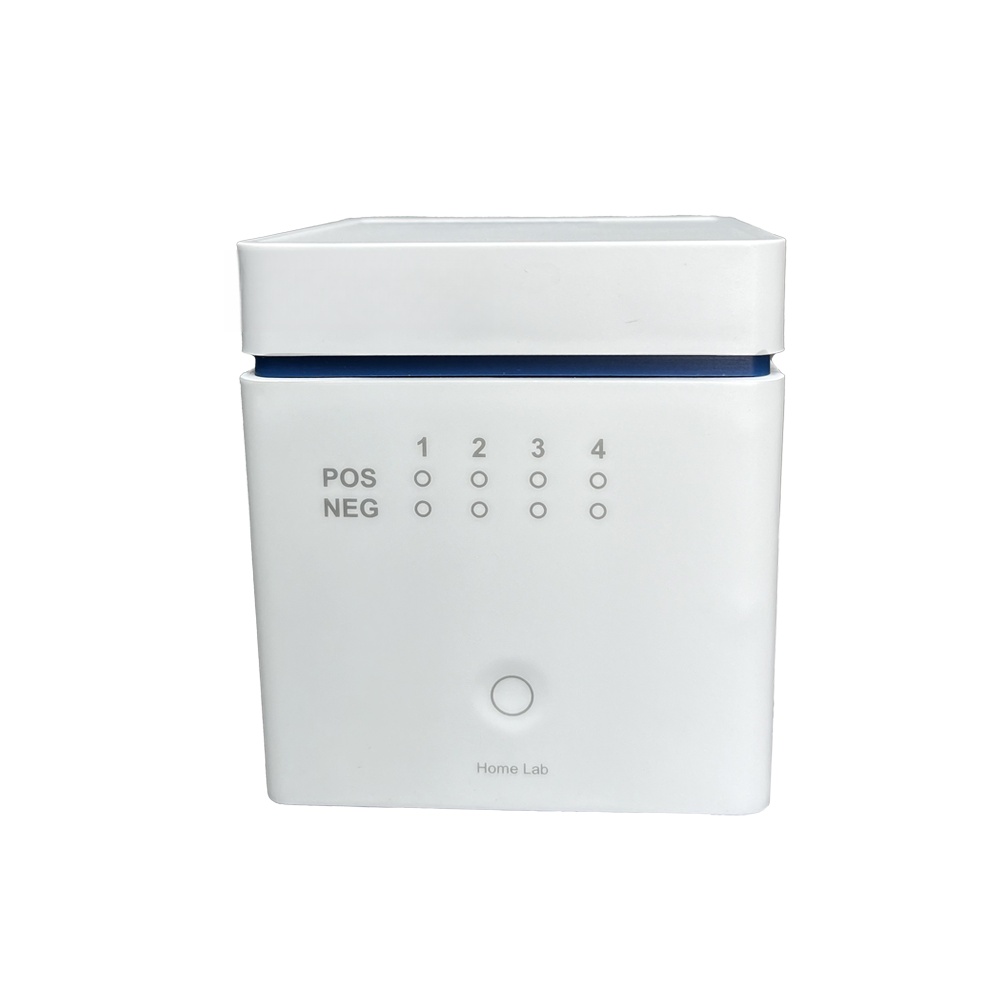

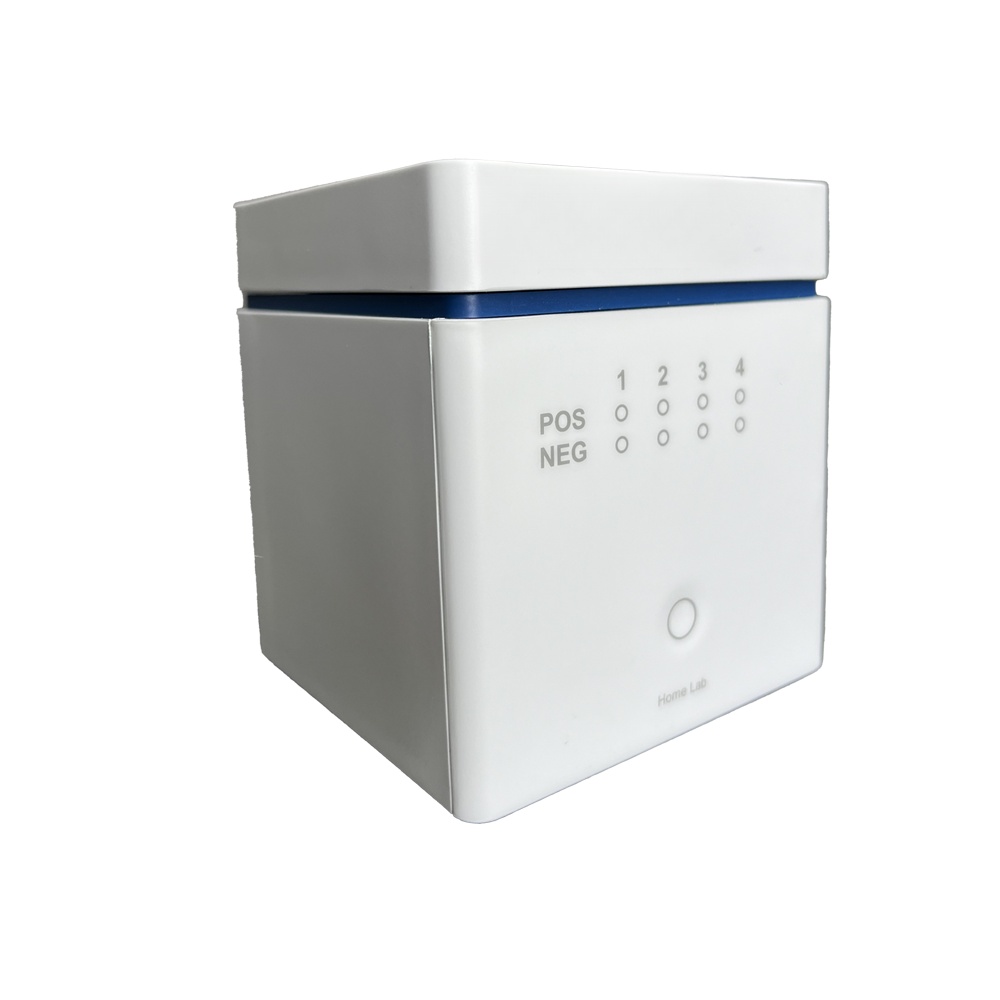

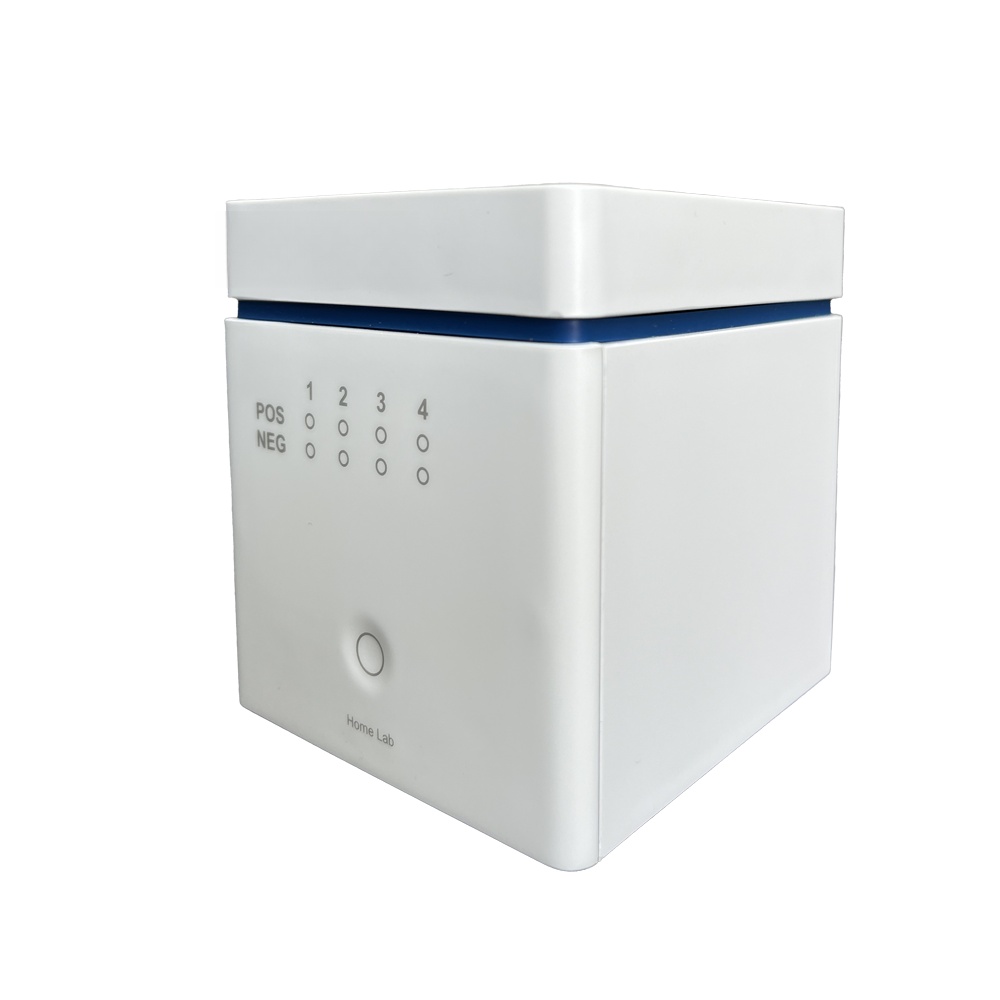

isothermal nucleic acid amplification analyzer is an instrument based on RT-LAMP (reverse transcription loop-mediated isothermal amplification) and optical color detection and interpretation technology. performs amplification under constant temperature conditions, the detector receives the reagent color signal, and the system automatically interprets and displays. Match with Mathing with Various Vet disease LAMP detection kits,can get the testing result in 40 MinsThe portable isothermal nucleic acid amplification analyzer is an instrument based on RT-LAMP (reverse transcription loop-mediated isothermal amplification) and optical color detection and interpretation technology. The instrument performs amplification under constant temperature conditions, the detector receives the reagent color signal, and the system automatically interprets and displays.
The instrument has the following characteristics:
1) Rapid detection: complete 4 samples nucleic acid detection within 40 minutes
2) Accurate and efficient: Lamp constant temperature amplification technology is adopted, with high efficiency and good specificity
3) Portable: the instrument is compact and portable
4) Bluetooth connection function: APP data management
5) High-transparent PC shell material, LED light-emitting screen display
6) Detection status prompt, detection countdown, control switch breathing light prompt
7) Optical sensor error-proofing design, can sense whether the reagent is put in the equipment
Supply voltage： DC 12,2A
Diamension: 80mm×80mm×90mm
Weight： x≤400g
Running conditions
Environment temperature： | 10℃ ～ 40℃ |
Relative humidity： | 30 ～ 75%(Non-condensing) |
Atmospheric pressure： | 86.0kPa ～ 106.0kPa |
Storage and transportation
Environment temperature： | -20 ～ 55℃ |
Relative humidity： | ≤95%(Non-condensing) |
Atmospheric pressure： | 86.0kPa ～ 106.0kPa |
Running conditions
Environment temperature： | 10℃ ～ 40℃ |
Relative humidity： | 30 ～ 75%(Non-condensing) |
Atmospheric pressure： | 86.0kPa ～ 106.0kPa |
Storage and transportation
Environment temperature： | -20 ～ 55℃ |
Relative humidity： | ≤95%(Non-condensing) |
Atmospheric pressure： | 86.0kPa ～ 106.0kPa |
The structure of this product is composed of a shell, an upper cover and a bottom plate. The inner side of the upper cover is equipped with an upper heating cover, the upper cover can be opened 90 degrees relative to the casing, the switching power supply is in the front of the product casing, and the external power supply connection ports are distributed on the back of the casing. The instrument is equipped with detection unit, temperature control module, interpretation indicator, Bluetooth connection and other parts.
The product structure diagram is as follows：
4. Scope of application and intended use
Scope of application：This product can generally be used by professional medical staff or inspectors in outdoor, laboratory, railway station, airport and other occasions.
