 Real time PCR Fluorescence  Quantitative Amplification (qPCR)System

Real time PCR Fluorescence Quantitative Amplification (qPCR)System

  • highlight iconReal time PCR Fluorescence Quantitative Amplification (qPCR)System
  • highlight iconSimultaneous detection of two fluorescent labels in a sample tube
  • highlight iconMatching with our Variouse type of Vet Diease detection PCR fluorescence Method Lyophilized reagent can get the result so quickly

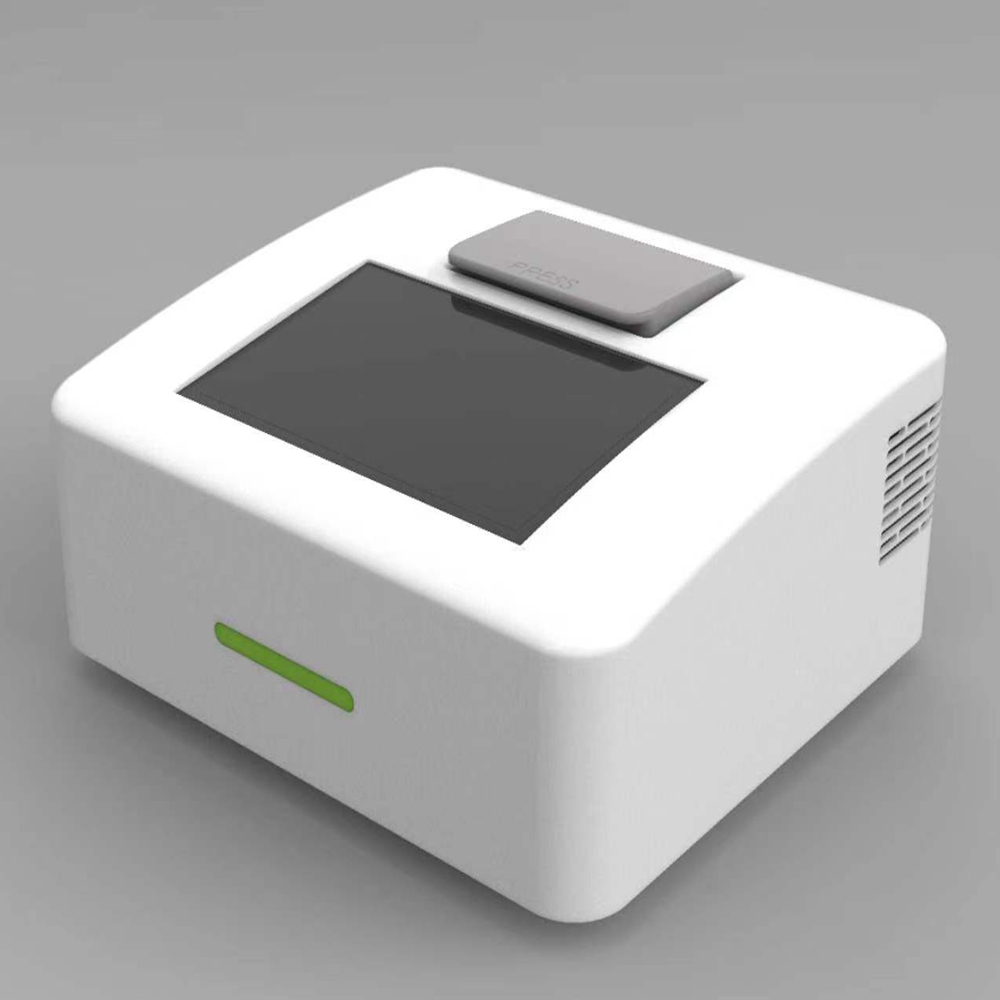

T8 Real time PCR Fluorescence  Quantitative Amplification (qPCR)System consists of three parts: the first part is temperature control system, which is essentially composed of standard heating/cooling system and hot cover. The second part is a fluorescence detection system consisting of optical elements, including excitation light source, optical filter, zoom lens and detection system. The third part is the external computer, which is used for programming, real-time detection, display and data management.

 Real time PCR Fluorescence  Quantitative Amplification (qPCR)System



 Main characteristics:

Excited light wavelength range: 400-700 nm

Simultaneous detection of two fluorescent labels in a sample tube

Linear dynamic range of sample concentration up to 0-9

Fast Data Acquisition

Simultaneous detection of 16 sample allows repeated analysis of data.

Software intuitive, user-friendly, fast setup and data display make fast result obtain







Temperature Control System

The temperature control system is composed of heating module and temperature control unit. The heating block is composed of TE module controlled independently.

能够确保模块升降温迅速、均匀,使用温度控制单元确保温度易于精确控制。

It ensures that the temperature of the wells up and down quickly and evenly, High performance of temperature uniformity thanks to the new temperature control system

热循环仪相关参数:

Thermal parameters of the instrument

温度控制范围为 4°C-99℃

Temperature control range : 4-99.

升降温平均速率≥2°C/

Average heating and cooling rate: 2.5/s)

温度精度控制在 ≤ ± 0.2°C

Temperature accuracy : 0.1.

控温精度: ≤±0.1°C 均匀性:≤± 0.2°C

Temperature uniformity: 0.2.

顶盖温度 104°C

Temperature of block lid: up to 110



 Fluorescence detection system

LT-8 fluorescence detection system consists of two optical components: excitation light system and detection system. The excitation system consists of LED and optical filter. The detection system consists of a set of emission filters, a set of lenses and photoelectric sensors.

Optical system parameters:

光源:LED

Light source: LED;

荧光检测范围:400 700nm

Fluorescence detection range: 400 to 700 nm;

激发波长:提供2 个通道数(450-700nm);

Excitation wavelength: 2 channels (450-700 nm)

发射波长:提供2 个发射波长(500-700nm)。

Emission wavelength: 2 channels (500-700 nm)



Software

LT-8 can display and control the whole process of amplification by embedded computer. PCR program . sample parameters, file storage and amplification control, experimental data collection processing and management all could be set up quickly and easily by the software ,

 Real time PCR Fluorescence  Quantitative Amplification (qPCR)System
